The Drip Irrigation Kit for Container Gardening: Is an incredibly simple and versatile drip irrigation kit. Our container kits can be used to drip irrigate flower pots, planter boxes and hanging baskets. This kit contains all the parts needed to drip irrigate up to 10, 20, or 30 separate containers (Can water up to 100 linear feet).
Advantages of this kit:

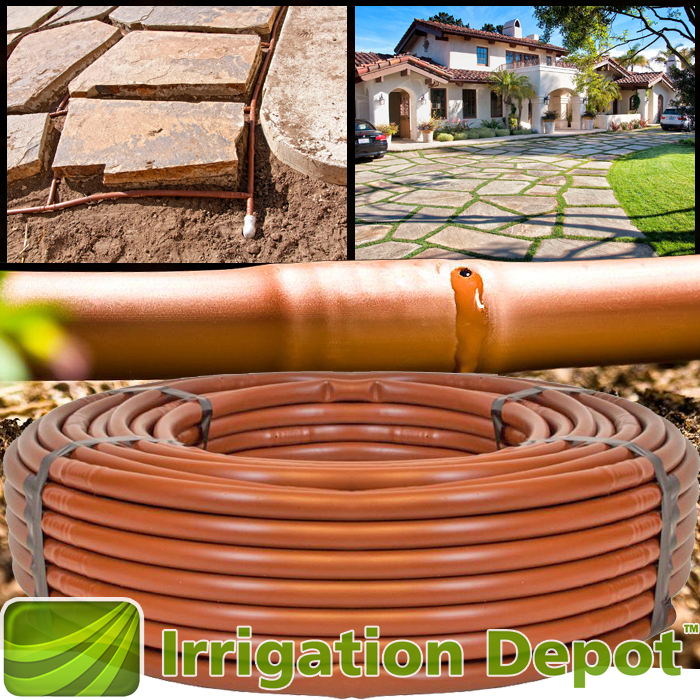

Excel series PC dripline is an advanced, pressure-compensating, linear low-density polyethylene drip line. The cylindrical flow-regulated inline emitters are self-contained units molded at specified intervals into the inner wall of the polyethylene tubing. Each has a self-cleaning mechanism at the water outlet chamber. Both the tubing and the drippers are manufactured from the finest quality resins to ensure uniform watering from each emitter, year after year.
FEATURES:
Specifications:

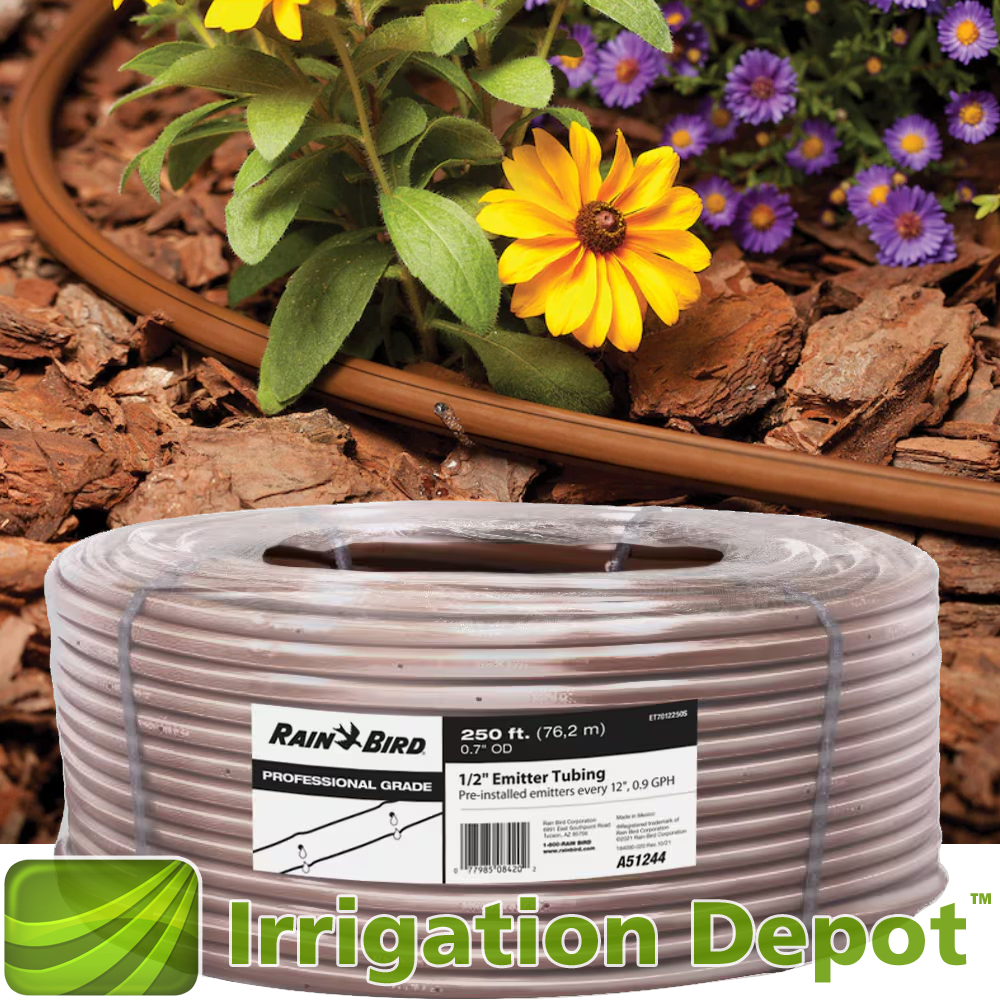

Designed for multi-season use, this rugged Rain Bird 1/2 in. emitter tubing provides dependable, uniform watering of vegetable plants, ground cover, flowers and other closely spaced plants. With 0.9 gph (gallons per hour) built-in emitters spaced every 12 inches, the tubing waters evenly from beginning to end of its layout in your planting area. Just cut, place and connect in any arrangement using Rain Bird 1/2 in. barbed or easy-fit compression fittings and stakes (purchased separately). The emitters are designed for clog-resistant flow. Other professional grade quality features include extra flexibility for kink-free installation, plus unmatched resistance to chemicals, algae growth and UV damage.
Specifications:

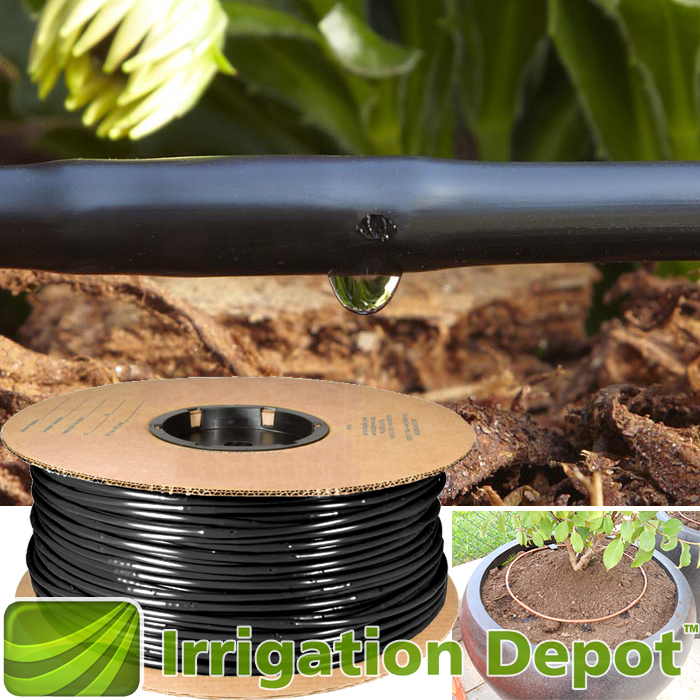

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.
Features:
| Pressure (PSI) | Flow (GPH) | Pressure(BAR) | Flow (L/H) |
|---|---|---|---|
| 10 | 0.42 | 0.7 | 1.6 |
| 15 | 0.52 | 1.0 | 2.0 |
| 20 | 0.58 | 1.4 | 2.2 |
| 25 | 0.65 | 1.7 | 2.5 |
| Drip emitters spacing | 6 inch | 9 inch | 12 inch |
|---|---|---|---|
| Average flow rate | .62 GPH | .62 GPH | .62 GPH |
| Maximum length in feet | 16' | 22' | 28' |
| Flow rate in GPM | .33 | .30 | .29 |
| Flow rate in GPH | 19.8 | 18.2 | 17.4 |
| # of drip emitters | 32 | 29 | 28 |
| Head loss in PSI | 5.5 | 6.4 | 7.6 |
| Velocity (f/s) | 4.7 | 4.3 | 4.1 |
Note: This information is based on 0% slope

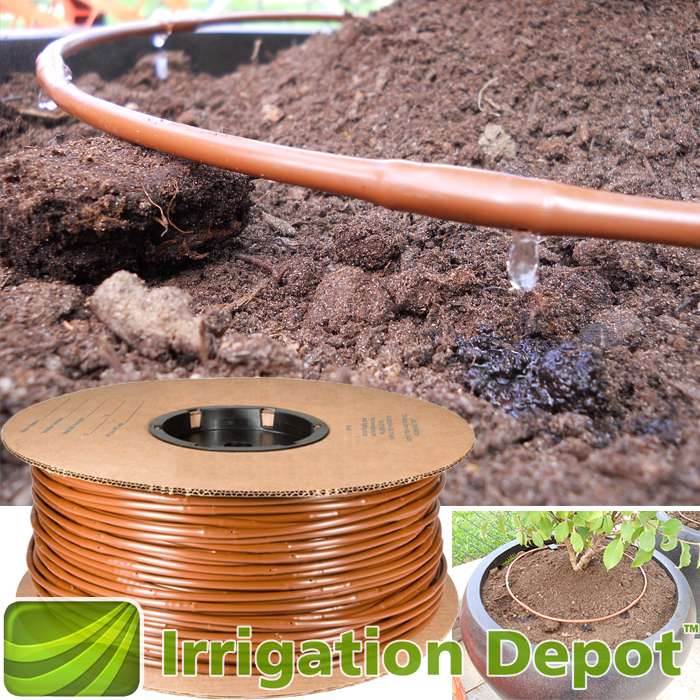

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.
Features:
| Pressure (PSI) | Flow (GPH) | Pressure(BAR) | Flow (L/H) |
|---|---|---|---|
| 10 | 0.42 | 0.7 | 1.6 |
| 15 | 0.52 | 1.0 | 2.0 |
| 20 | 0.58 | 1.4 | 2.2 |
| 25 | 0.65 | 1.7 | 2.5 |
| Drip emitters spacing | 6 inch | 9 inch | 12 inch |
|---|---|---|---|
| Average flow rate | .62 GPH | .62 GPH | .62 GPH |
| Maximum length in feet | 16' | 22' | 28' |
| Flow rate in GPM | .33 | .30 | .29 |
| Flow rate in GPH | 19.8 | 18.2 | 17.4 |
| # of drip emitters | 32 | 29 | 28 |
| Head loss in PSI | 5.5 | 6.4 | 7.6 |
| Velocity (f/s) | 4.7 | 4.3 | 4.1 |
Note: This information is based on 0% slope
Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.
Features:
| Pressure (PSI) | Flow (GPH) | Pressure(BAR) | Flow (L/H) |
|---|---|---|---|
| 10 | 0.42 | 0.7 | 1.6 |
| 15 | 0.52 | 1.0 | 2.0 |
| 20 | 0.58 | 1.4 | 2.2 |
| 25 | 0.65 | 1.7 | 2.5 |
| Drip emitters spacing | 6 inch | 9 inch | 12 inch |
|---|---|---|---|
| Average flow rate | .62 GPH | .62 GPH | .62 GPH |
| Maximum length in feet | 16' | 22' | 28' |
| Flow rate in GPM | .33 | .30 | .29 |
| Flow rate in GPH | 19.8 | 18.2 | 17.4 |
| # of drip emitters | 32 | 29 | 28 |
| Head loss in PSI | 5.5 | 6.4 | 7.6 |
| Velocity (f/s) | 4.7 | 4.3 | 4.1 |
Note: This information is based on 0% slope
This easy to install tubing provides full length, slow and steady flow for deep root It is ideal for gardens, flowerbeds, closely planted areas, potted plants watering around trees.
Features:
Features:
Designed for use with 1/2-inch drip irrigation tubing (16 and 17 mm ID), HydroPlus barbed fittings push together and grab onto the tubing to provide a secure and leakproof connection. They're designed for use with any tubing brand when you need to connect two lengths quickly and easily. These barbed fittings help you create your own custom layout to fit your garden's planting areas.
Features:
DIG PN: 15-042
Netafim PN: TLELL
Rain Bird PN: BE50 or A50785
This is the most economical fitting for capping off the end of a 1/2" drip line. Just slide one hole onto the end of the drip mainline, bend the tubing back, and slide the other hole over the end of the pipe.
DIG PN: 16-021
Netafim PN: TLFIG8
Rain Bird PN: EC50 or A50786
Designed for use with 1/2-inch drip irrigation tubing (16 and 17 mm ID), HydroPlus barbed fittings push together and grab onto the tubing to provide a secure and leakproof connection. They're designed for use with any tubing brand when you need to connect two lengths quickly and easily. These barbed fittings help you create your own custom layout to fit your garden's planting areas.
Features:
DIG PN: 15-041
Netafim PN: TLTEE
Rain Bird PN: BT50 or A50784
Designed for use with 1/2-inch drip irrigation tubing (16 and 17 mm ID), HydroPlus barbed fittings push together and grab onto the tubing to provide a secure and leakproof connection. They're designed for use with any tubing brand when you need to connect two lengths quickly and easily. These barbed fittings help you create your own custom layout to fit your garden's planting areas.
Features:
DIG PN: 15-040
Netafim PN: TLCOUP
Rain Bird PN: BC50 or A50870

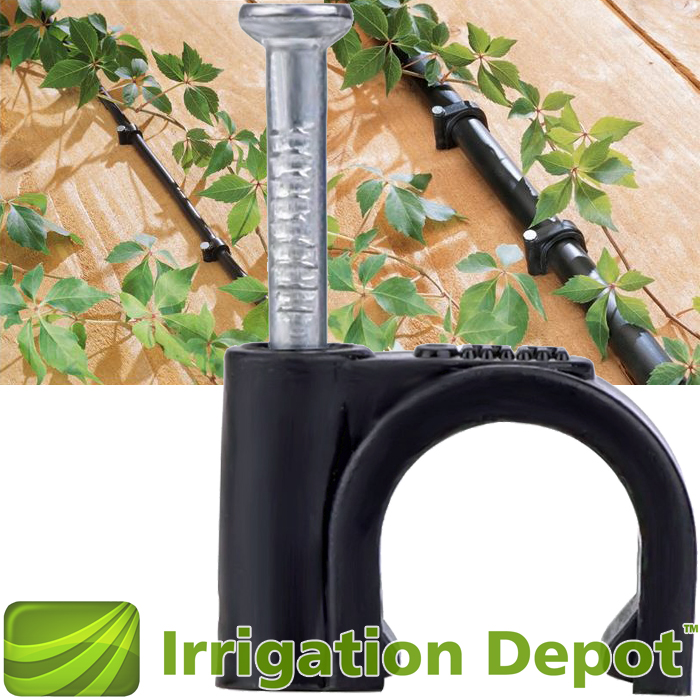

Use to attach 1/4 in. or 1/2 in. drip tubing to wood, stucco or masonry surfaces. The UV plastic clamp comes with nail, ready to apply.
FEATURES:
Use to attach 1/4 in. or 1/2 in. drip tubing to wood, stucco or masonry surfaces. The UV plastic clamp comes with nail, ready to apply.
FEATURES:
Use to attach 1/4 in. or 1/2 in. drip tubing to wood, stucco or masonry surfaces. The UV plastic clamp comes with nail, ready to apply.
FEATURES:
Use to attach 1/4 in. or 1/2 in. drip tubing to wood, stucco or masonry surfaces. The UV plastic clamp comes with nail, ready to apply.
FEATURES:
