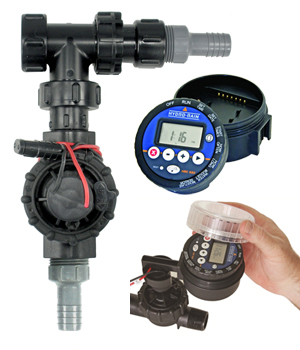

HRC 990 is Hydro-Rain's latest upgrade to the 900 series isolation valve controller. Feature packed and capable of opperating up to 4 valves on battery power the 990 is just a start!
HRC 990 is easily converted into a "green" controller by adding its moisture sensor module or go battery free with its solar power module. Whatever combination of features you decide on you'll be satisfied with HRC 990's reliabilty, ease of use, and performance.
FEATURES AND BENEFITS
- Unique Water Tight Plug-in System—Requires no splices or wire connectors.
- Battery Powered—Wire-free installation provides convenience and speed (3 AA batteries included).
- Two Independent Programs (A and B)— Programming flexibility previously only available in larger AC system controllers.
- Modular—Base unit HRC 990 accepts up to 4 DC solenoid modules. One solenoid is included with base unit, additional solenoids sold separately.
- Universal Design—For use with multiple brands of valves including: Hydro-Rain® HRB, HRJ, Rain Bird® PEB, PESB, DV, Irritrol 205 Series, and more (adapters included).
- Water Budgeting—Saves water by adjusting the watering durations (10% to 200%).
- Rain Delay—Postpones regular watering schedule for 24, 48, 72 hours and resumes automatic watering when set time has passed.
- Submersible—Functions properly submersed up to 3'.
- Moisture Sensor Ready—Let the water content in the soil determine watering schedules with the Moisture Module (HRC 990 MS MD sold separately).
- Solar Power Ready—Go battery-free by harnessing power from the sun with the solar power module (HRC 990 SP MD sold separately).
- High Environment Tolerance—Operates effectively from +32°F to 167°F (0°C to +75°C). Do not leave immersed in water at freezing temperatures.
OPERATING SPECIFICATIONS
- Station Timing: 0-240 minutes (in 1-minute increments); 0-480 minutes with water budgeting
- Automatic Starts: 4 per day for each program (8 per day when using dual program capability
- Programming Schedule: Odd, even, or interval (1-32 days), or cycle by day (Monday through Sunday)
- Water Budgeting: 10%-200% in 10% increments
- Rain Delay: Programmable from 24, 48 or 72 hours
DIMENSIONS
- Height: 2 3/8" (6,0329 cm) Length: 3 1/2" (8,89 cm)
ENVIRONMENTAL SPECIFICATIONS
- IP-68 Rated: Withstands long periods of immersion 3' under water
- HRC 990 MS MD (Rain/Freeze Sensor Module)
- HRC 990 SD MD (Solenoid Module)
OPERATING SPECIFICATIONS
- Max Pressure: 150 PSI
- Interchangeable: Use on Hydro-Rain models HRJ 100 and HRZ 100 with HRC 990 Controller
ELECTRICAL SPECIFICATION
Battery Power: 3 AA (included)
Solenoid: 13V DC Latching
HRC-990 Battery-Powered Sprinkler Controller Video
