Excel series PC dripline is an advanced, pressure-compensating, linear low-density polyethylene drip line. The cylindrical flow-regulated inline emitters are self-contained units molded at specified intervals into the inner wall of the polyethylene tubing. Each has a self-cleaning mechanism at the water outlet chamber. Both the tubing and the drippers are manufactured from the finest quality resins to ensure uniform watering from each emitter, year after year.

FEATURES:

• Used for above or below grade installation
• Flow regulated, self flushing inline emitters deliver equal flow at a wide range of operating pressures
• Flow uniformity regardless of operating pressure and variation along the line
• The dripper and the diaphragm are self-contained units that are molded to the interior wall of the tubing
• Turbulent flow through a large labyrinth water passage helps reduce clogging
• Clogging is also reduced due to the dripper's filter intake area being continuously flushed by the water flow
• Made of three (3) individual sections including a cylindrical plastic housing with labyrinth water passage, a floating silicon diaphragm and a plastic receptacle
• Two (2) outlets per dripper ensures a reduced chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscaping
• Flexible tubing for easy installation
• Used with low density, UV resistant, 7510 polyethylene resins with Fingerprint™
• Diameters: .570 ID x .670 OD (14.4 mm ID x 17 mm OD)

Excel series PC dripline is an advanced, pressure-compensating, linear low-density polyethylene drip line. The cylindrical flow-regulated inline emitters are self-contained units molded at specified intervals into the inner wall of the polyethylene tubing. Each has a self-cleaning mechanism at the water outlet chamber. Both the tubing and the drippers are manufactured from the finest quality resins to ensure uniform watering from each emitter, year after year.

FEATURES:

• Used for above or below grade installation
• Flow regulated, self flushing inline emitters deliver equal flow at a wide range of operating pressures
• Flow uniformity regardless of operating pressure and variation along the line
• The dripper and the diaphragm are self-contained units that are molded to the interior wall of the tubing
• Turbulent flow through a large labyrinth water passage helps reduce clogging
• Clogging is also reduced due to the dripper's filter intake area being continuously flushed by the water flow
• Made of three (3) individual sections including a cylindrical plastic housing with labyrinth water passage, a floating silicon diaphragm and a plastic receptacle
• Two (2) outlets per dripper ensures a reduced chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscaping
• Flexible tubing for easy installation
• Used with low density, UV resistant, 7510 polyethylene resins with Fingerprint™
• Diameters: .570 ID x .670 OD (14.4 mm ID x 17 mm OD)

Excel™ PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve for subsurface irrigation is a reliable, durable and precise pressure compensating dripline used for narrow or dense plantings. The dripline’s cylindrical drip emitters have built in check valves to prevent siphoning when water pressure drops below 2.5 PSI. This feature protects the inline emitters from sediment, soil particles and debris entering the dripline. Each cylindrical drip emitter’s floating diaphragm regulates and maintains a consistent flow rate at variable inlet pressures ranging from 12 to 50 PSI in a wide range of demanding conditions. Excel™ PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve provides a colored stripe for each flow rate and unlike other dripline with only a single outlet, Excel™ PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve has two outlets per emitter. If one outlet becomes blocked, a second outlet on the opposing side of the dripline provides redundancy to the dripline performance. The Excel™ PCD CV Pressure compensating, Dual Outlet Dripline with Check Valve is made of premium low-density polyethylene resins with UV protection and large, tough cylindrical drip emitters, offering a combination of outstanding environmental stress-cracking resistance and burst strength with anti-siphoning capability for subsurface irrigation applications.

FEATURES:

• Can be installed above or below grade
• Inline emitter check valves prevent drainage from the dripline when water pressure drops below 2.5 PSI, protecting the emitters against the siphoning of small sediment and soil particles into the drip emitter
• Two outlets per emitter; If one outlet becomes blocked, a second outlet on the opposing side of the dripline provides redundancy to the dripline performance
• Available in two flow rates, a wide range of emitters spacing and a wide range of drip tubing lengths to provide maximum design flexibility in a variety of applications
• Available with double stripes colored codes, representing the drip line flow rates
• Pressure compensating feature provides flow uniformity regardless of operating pressure and variation along the line
• Drip emitter and diaphragm are self-contained units molded to the interior wall of the tubing
• Flow path design supports superior clogging resistance
• Turbulent flow through large labyrinth water passages leads water into the flow control chamber where a sensitive floating silicon diaphragm regulates and maintains a constant flow rate at variable inlet pressures.
• The self-flushing silicon diaphragm allows pressure to build up within the chamber and flush any debris not captured by the inlet filter.
• Dripline includes one inlet and two outlets per each emitter
• Intake inlet has a number of raised grooves that act as a secondary filter.
• The filter intake area is continuously flushed by water flow throughout the operation of the system, preventing particles from entering the labyrinth and giving the drip emitter its resistance to clogging.
• Check valve and dual, oppositely oriented directional outlets act as a physical barrier to root and debris intrusion
• Resistant to chemicals and fertilizers commonly used in landscaping
• Protected against UV degradation
• Flexible tubing for easy installation
• Dripline is printed with the flow rate and size for easy identification
• Use with HydroPlus 17 mm barb fittings, .670" OD compression fittings and universal Hydro-Lock™ fittings
• Used with low density, UV resistant, 7510 polyethylene resins with Fingerprint™
• Diameters: .570 ID x .670 OD (14.4 mm ID x 17 mm OD)

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins

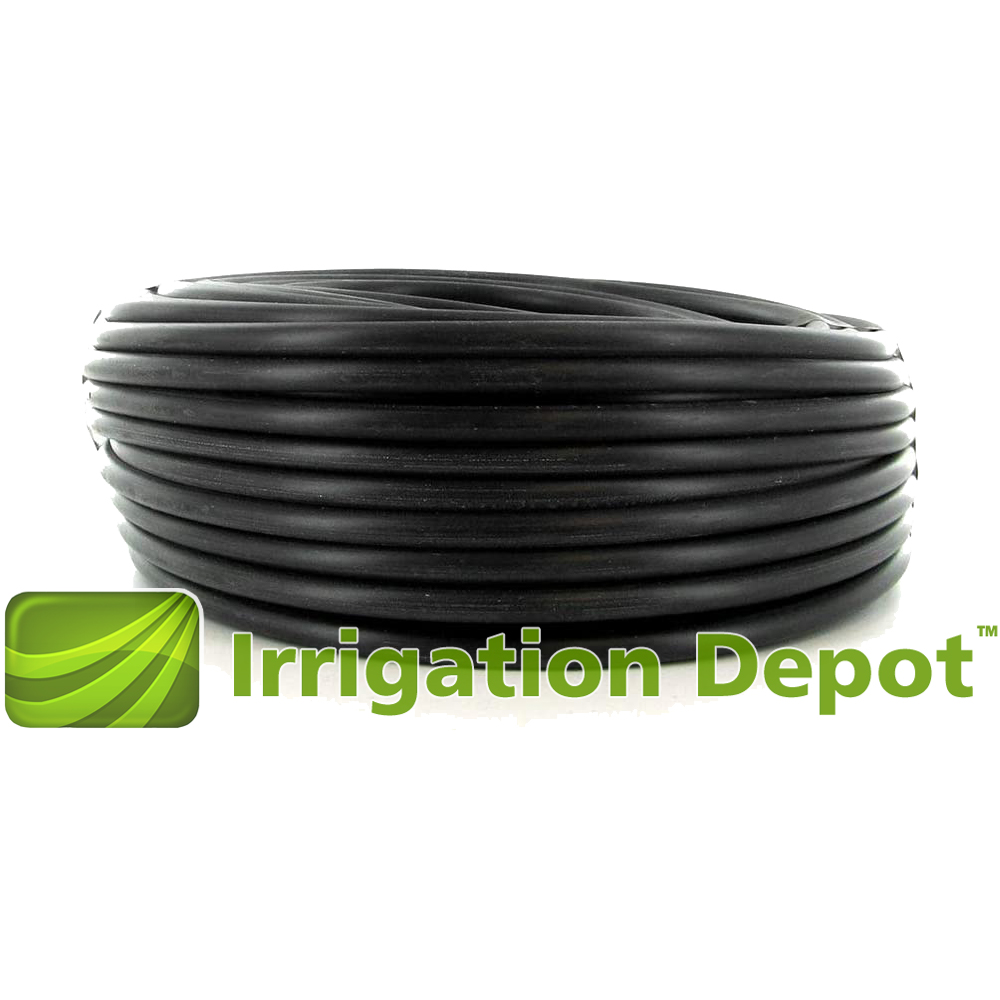

This universal tubing works with most new or existing drip systems. To distribute water (above or below ground) from main pipe to drippers, misters and low volume sprinklers. UV-resistant.

Features and Benefits

• UV-resistant
• Made of high quality polyethylene material

If you want a pipe of better quality, more thick and much more flexible. We strongly suggest you this product. Click here

This universal tubing works with most new or existing drip systems. To distribute water (above or below ground) from main pipe to drippers, misters and low volume sprinklers. UV-resistant.

Features and Benefits

• UV-resistant
• Made of high quality polyethylene material

If you want a pipe of better quality, more thick and much more flexible. We strongly suggest you this product. Click here

This universal tubing works with most new or existing drip systems. To distribute water (above or below ground) from main pipe to drippers, misters and low volume sprinklers. UV-resistant.

Features and Benefits

• UV-resistant
• Made of high quality vynyl material
• .156" ID x .245" OD

Micro-line is a small diameter, low-density polyethylene dripline. The dripline emitters have a cylindrical design with a long turbulent flow path and an inlet filter to prevent particles from entering the drip emitter labyrinth. The Micro-line dripline inline emitters are inserted and welded to the interior wall of the polyethylene micro tubing in a preset spacing making it suitable for use in a wide range of applications.

Features:

• Used for above or below the surface or under mulch for a variety of applications such as containers and narrow plantings
• Large labyrinth water passage and turbulent flow help reduce clogging
• Inlet filter helps to prevent particles from entering the drip emitter labyrinth path
• Two (2) outlets per dripper ensure less chance of clogging
• Resistant to chemicals and fertilizers commonly used in landscape applications
• Used with 1/4" (5 mm) barbed fitting
• Flexible tubing for easy installation
• Made of low-density, UV-resistant, 7510 polyethylene Fingerprint™ resins
